Reference: 016254A
Product Name: Front Suspension Bushing Kit SPORT
Suitable for:
- Alfa Romeo 159 (05-11) type 939
- Alfa Romeo Brera (05-10) type 939
- Alfa Romeo Spider (05-10) type 939
Includes:
- 2x 011653A: Front upper arm bushing - front SPORT
- 2x 011654A: Front upper arm bushing - rear SPORT
- 2x 011703A: Rear lower arm bushing 46mm SPORT OR
- 2x 011704A: Rear lower arm bushing 54mm SPORT
- 2x 011870A: Front stabilizer bushing SPORT

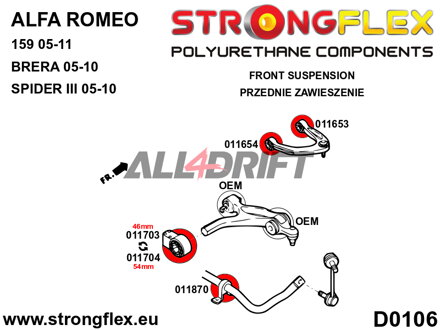

Diagrams:
- D0106
- S0106
- S0107
Notes
- To install the 011703/011704 bushing, use the outer aluminum bracket from the old original rubber bushing.
- There are two sizes of bushing brackets. Older models up to approximately 2007 have a 46 mm bracket (011703 bushing). Newer models after approximately 2007 have a 54 mm bracket (011704 bushing).
- For 011870 bushing: To install the new polyurethane bushing, it is necessary to drill a hole in the stabilizer bracket. Do not drill through the bracket!
Required/car: 1
Pcs / product: 1
Pcs / SET: 8
Hardness: 90Sha
Material: POLYURETHANE (PUR/PU)
We add grease to each product!
