Reference: 036105B

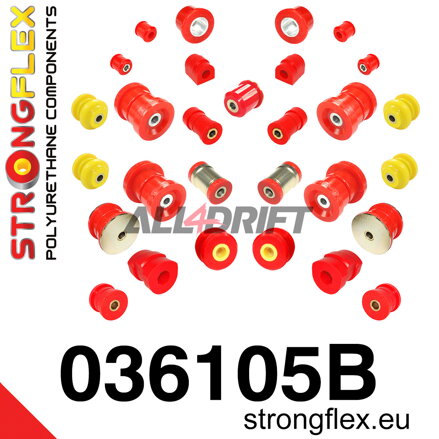

Product Name: Complete axle polyurethane bush kit
Suitable for:
- BMW 3 III (90-99) E36
- BMW 3 III (92-99) E36 M3
The set includes:
- 2x 031195B: Front Lower Wishbone Bush - Centric 60mm
OR - 2x 031369A: Front Lower Wishbone Bush - Eccentric 60mm SPORT
OR - 2x 031737A: Front Lower Wishbone Bush - Centric 60mm E46 Wishbone SPORT
OR - 2x 031738A: Front Lower Wishbone Bush - Eccentric 60mm E46 Wishbone SPORT
- 2x 031183B: Front Anti Roll Bar Bush
- 0/2x 031525B: Front Anti Roll Bar Link Bush
- 2x 031173B: Front Trailing Arm Bush
- 2x 031174B: Rear Upper Wishbone Inner Bush
- 4x 031175A: Rear Wishbone Outer Bush SPORT
- 2x 031176B: Rear Lower Wishbone Inner Bush
- 2x 031167B: Anti Roll Bar Bush Front / Rear
- 2x 031789B: Rear Anti Roll Bar Link to ARB Bush
- 2x 031790B: Rear Anti Roll Bar Link to Wishbone Bush
- 2x 031350B: Front Subframe Bush
- 2x 031351B: Rear Subframe Bush
- 1x 031750B: Front Rear Diff Mounting Bush
OR - 1x 031736B: Front Rear Diff Mounting Bush M3 EVO
- 2x 031587B: Rear Rear Diff Mounting Bush
Diagrams:
- D0302
- D0322

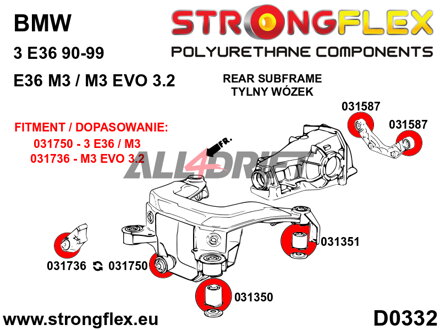

- D0332

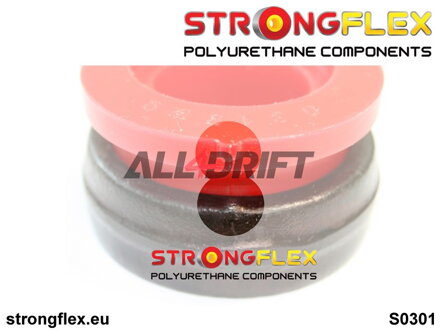

- S0301
- S0306
Notes
- 031525 bush fits only to the link attached to the arm. It does not fit the connecting rod connecting the stabilizer with the shock absorber. It does not fit E36 M3 and Z3M models.
- Rear bush of the front arm:
031195 - centric 60mm
031369 - eccentric 60mm
031737 - centric 60mm E46 arm
031738 - eccentric 60mm E46 arm - Front bush of the rear differential:

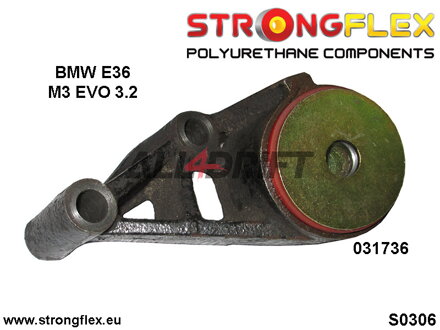

If you have an E36 M3 EVO 3.2 model where the differential is mounted on a separate bracket, choose 031736 bushes. For other E36 models, the 031750 bush fits. See attached photo S0306.
Required/car: 1
Pcs / product: 1
Pcs / set: 27/29
Hardness: 80Sha
Material: POLYURETHANE (PUR/PU)
We add grease to each product!
