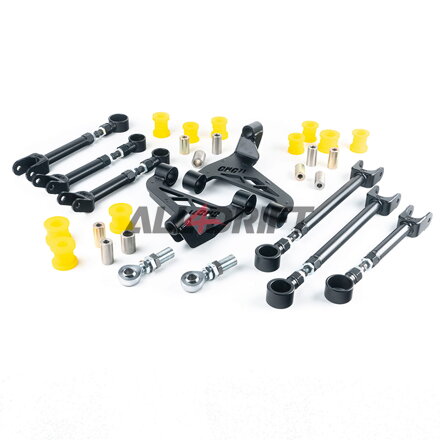

ADJUSTABLE REAR SUSPENSION SET NISSAN 350Z / INFINITI G35

ADJUSTABLE REAR SUSPENSION SET NISSAN 350Z / INFINITI G35

Product rating: 5/5 (1x)

Your rating:

With this kit from CNC71 for the Nissan 350Z, it is possible to adjust the rear suspension to best suit the driver's driving style. This is especially useful when preparing the car for autosport – drifting and time-attack. The kit is also an ideal solution for lowering the car to achieve the desired wheel-to-body effect - perfect for a lowered suspension.

1089 € incl. VAT

900 €

Availability: In 3 days
Delivery date: Thursday 30.5.2024

Producer: CNC71

Made of S355 steel

Made on CNC machines

Welded by MAG and TIG method

100% compatible with the stock steering knuckle pin, adapted for polyurethane bushings.

Powder coating in matte black.

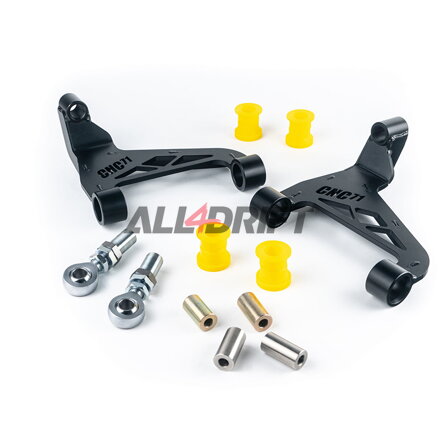

Nissan 350Z Adjustable Rear Upper Control Arms:
Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used. The suspension of the swinging fork is based on a ball bearing.

Thanks to the adjustment range in "+" and "-", the CNC71 Motorsport swingarm for Nissan 350Z allows you to get the maximum traction of the vehicle on the drive axle. The total adjustment range is approx. 30 mm (280 mm - 310 mm), of which, compared to the original swing arm (300 mm), it can be shortened by 20 mm or extended by 10 mm.

The upper transverse arm makes it possible to change mainly the angle of deflection of the wheel.

The set includes:

-Adjustable rear upper transverse arm LEFT - 1 pc.
-Adjustable rear upper transverse arm RIGHT - 1 pc.
-Uniball M18 - 2 pcs.
-Set of uniball inserts (cross mount)
-Lock nuts for uniball
-Set of screws
-Special insert for adjusting the swingarm length

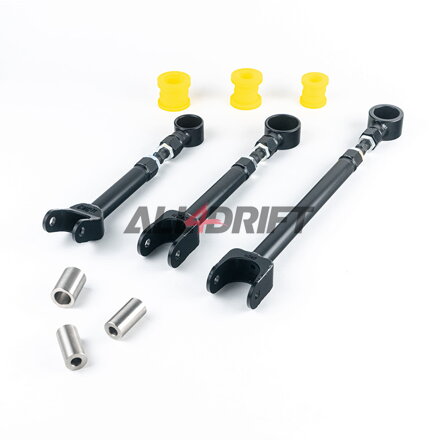

Nissan 350Z Adjustable Rear Tie Rods:
Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

Thanks to the adjustment range in "+" and "-", the CNC71 Motorsport swingarm for Nissan 350Z allows you to get the maximum traction of the vehicle on the drive axle. The total adjustment range is approx. 30 mm (322 mm - 352 mm), of which, compared to the original swing arm (332 mm), it can be shortened by 10 mm or extended by 20 mm.

The drawbar allows you to change mainly the toe and camber.

The set includes:

-Adjustable rear draw bar - 2 pcs.
-Lock nuts - 2 pcs.
-Set of screws
-Roman screw

Nissan 350Z Adjustable Rear Lower Control Arms:
Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

Thanks to the adjustment range in "+" and "-", the CNC71 Motorsport swingarm for Nissan 350Z allows you to get the maximum traction of the vehicle on the drive axle. The total adjustment range is approx. 30 mm (298 mm - 328 mm), of which, compared to the original swing arm (308 mm), it can be shortened by 10 mm or extended by 20 mm.

The adjustable lower cross arm allows you to change mainly the toe-in and the camber angle.

The set includes:

-Adjustable lower rear transverse arm - 2 pcs.
-Lock nuts - 2 pcs.
-Set of screws
-Roman screw

Nissan 350Z Adjustable Rear Coil Links:
Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

Thanks to the adjustment range in "+" and "-", the CNC71 Motorsport coil link for Nissan 350Z allows you to get the maximum traction of the vehicle on the drive axle. The total adjustment range is approx. 30 mm (435 mm - 465 mm), of which, compared to the original swing arm (445 mm), it can be shortened by 10 mm or extended by 20 mm.

Coil link allows you to change mainly the toe and camber.

The set includes:

-Adjustable rear coil link - 2 pcs.
-Locking nuts - 2 pcs.
-Set of screws
-Roman screw

Typ vozidla: NISSAN
Značka vozu: NISSAN
Typ: Ramená
